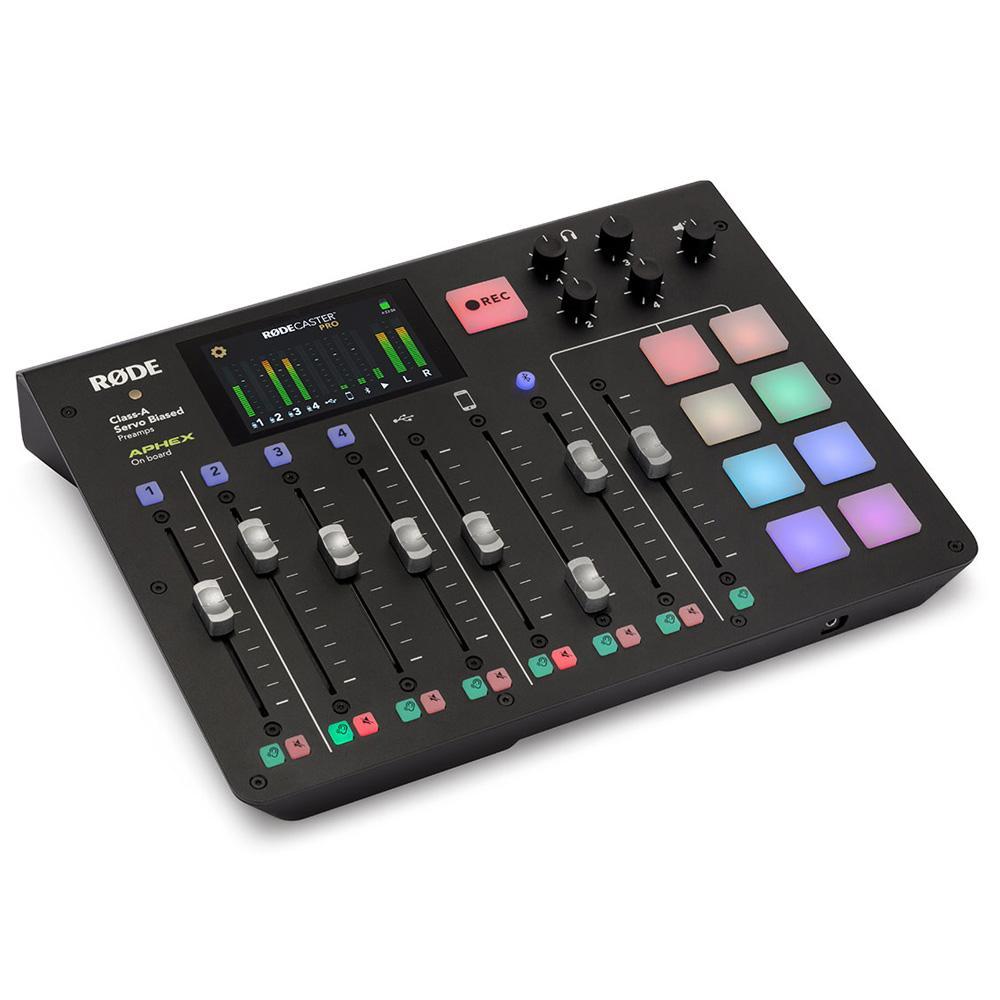

RODE Caster Pro Sound Mixer

Rode Rodecaster Pro Product Features:

Connect and record

The 4 high-quality microphone channels are able to power studio condenser microphones as well as conventional dynamic microphones. You can quickly connect microphones for you and your guests with automatic level setting and one-touch recording to a microSD card. You can literally be recording your first podcast within minutes of taking the RØDECaster Pro out of the box.

Sound Effects and Jingles

The RØDECaster Pro comes with eight programmable sound effects pads, for instant triggering of sound effects, music, jingles, applause and ads – perfect for giving your podcast that professional quality. You can record audio direct to the programmable pads from any input, or simply “drag and drop” files from your computer using the supplied software. You can even select your favourite colours for the pad illumination.

Phone calls

Have a remote guest you want to interview? Simply connect your phone to the RØDECaster Pro via Bluetooth™ or with a TRRS cable. The RØDECaster Pro automatically provides “mix-minus” audio to prevent echo being heard by the caller, without the need to purchase dedicated and costly hardware. Telephone interviews with a remote guest never sounded so good!

Class A Servo-biased Preamps

The RØDECaster Pro’s pristine preamps and outputs feature Class A circuitry, as found in broadcast consoles that cost hundreds of thousands of dollars. The Class A preamps provide a much cleaner gain structure with lower levels of distortion. The result is an incredibly clean, low-noise signal. The Preamps are also servo-biased, keeping distortion levels low. Your signal is broadcast-pure.

APHEX® On board

Your pristine signal can also be enhanced with the legendary patented audio processors, APHEX Aural Exciter™ and APHEX Big Bottom™. These have been incorporated in the audio processing section of the RØDECaster Pro, and your sound will have that rich, warm tone only found in professional studios. The RØDECaster Pro also features multistage dynamics, such as compression, limiting, de-essing and noise-gating.

Recording options

The RØDECaster Pro operates as a standalone unit straight out of the box, recording direct to a microSD™ card. You can be up and running in minutes. The RØDECaster Pro can also connect to your computer via USB, as it is a USB audio interface. This means you can record your podcast to your favourite recording software.

The RØDECaster Pro is also able to seamlessly stream a live show – today’s radio!

Rode Rodecaster Pro Technical Specifications:

ACOUSTICS & ELECTRICAL SPECIFICATION

Frequency Range

Mic Inputs:20 Hz – 20 kHz, -3dB at 20 Hz (high-pass filter)

Monitor Outputs:20 Hz – 20 kHz better than ±0.5dB

Input Impedance

600Ω (Mic Preamplifiers)

Equivalent Noise

–125dBA (A-Weighted, measured as per IEC651)

Maximum Output Level

+3dBu (Monitor Outputs)

Headphone Output Power

Max output power at 1% THD: 32Ω –> 220mW | 300Ω –> 31mW

Dynamic Range

100 dBA (Mic Preamplifiers)

Gain Range

0dB – 55dB (Mic Preamplifiers)

Power Requirements

External DC power supply 12 - 15v DC, 1A

Output Connection

USB-C, 1/4” Balanced TRS STEREO (Monitor Outputs)

Computer Connectivity

USB

Bit Depth

24-Bit

Sample Rates

48 kHz

Storage

microSD™ card slot, 512MB internal memory for storing sounds for programmable pads

MECHANICAL SPECIFICATION

Colour

Black

Weight (g)

1980

Dimensions (L x W x H, mm)

350 x 275 x 82

Packed Weight (g)

2850

Package Dimensions (L x W x H, mm)

412 x 338 x 127
