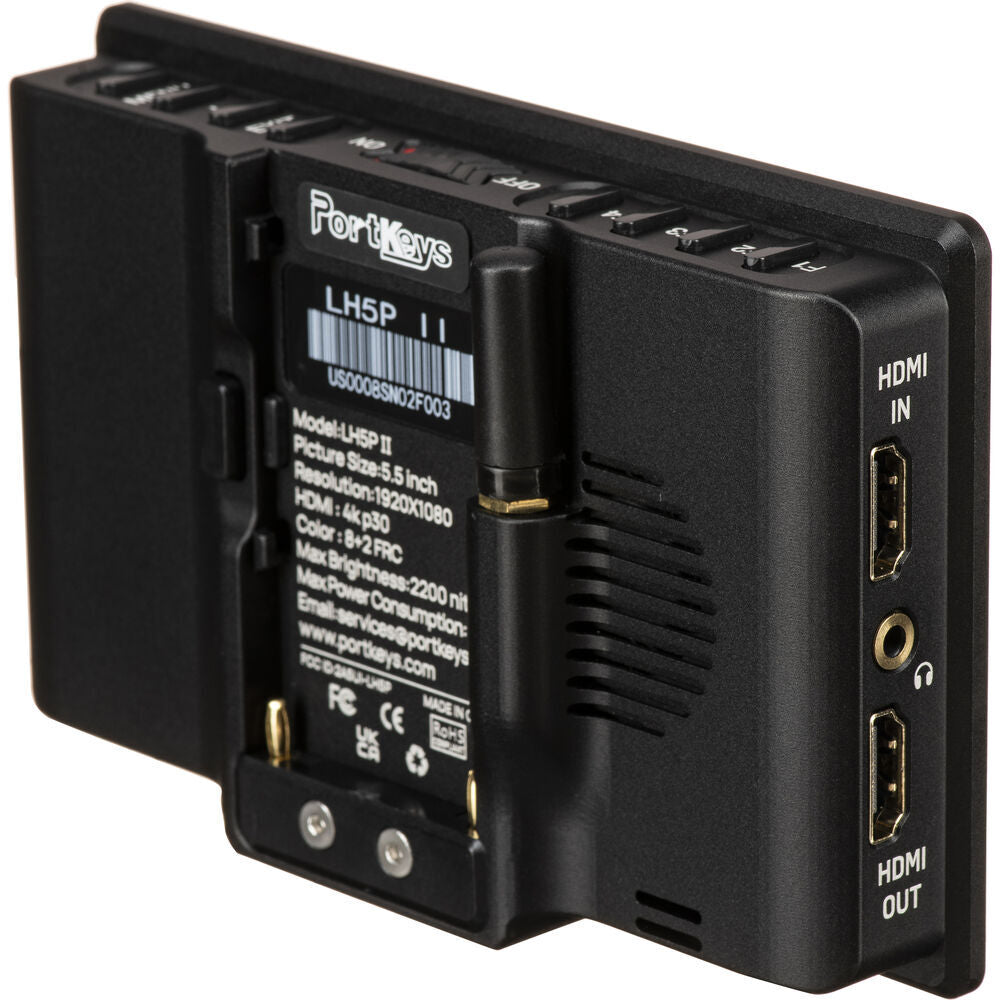

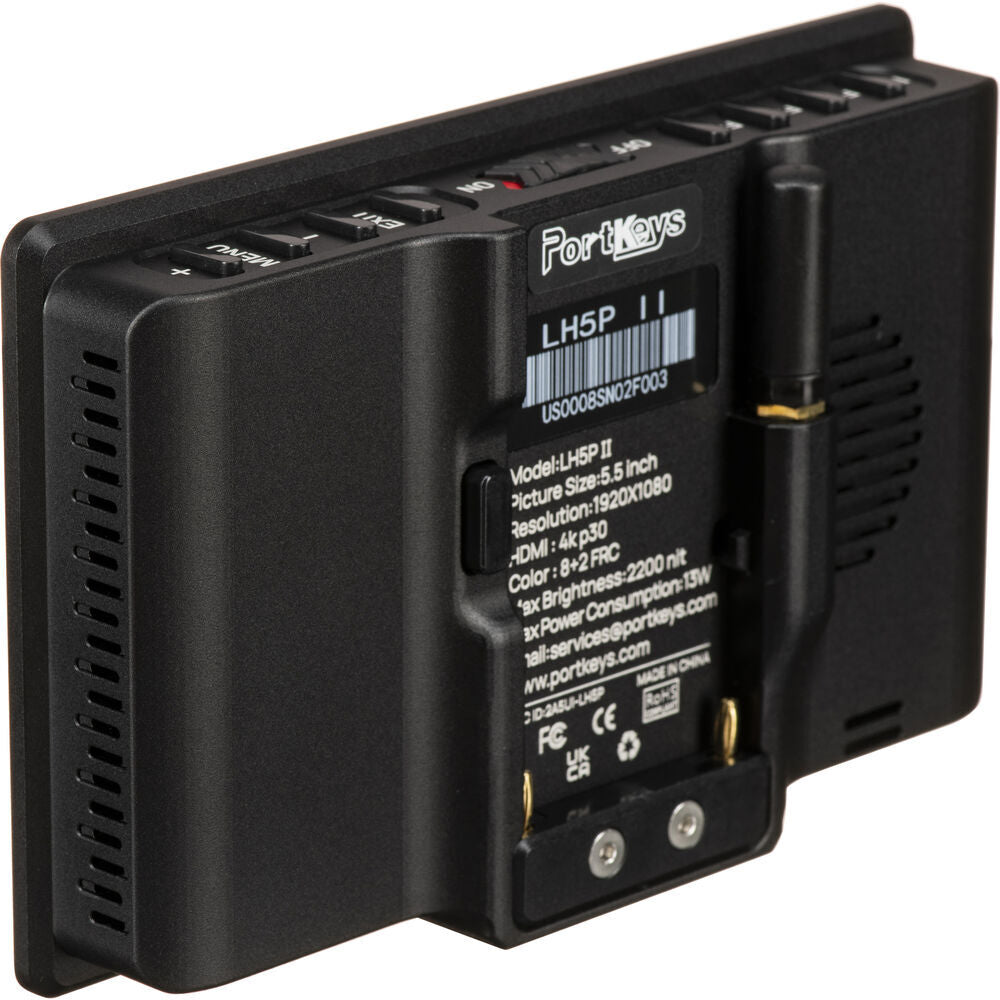

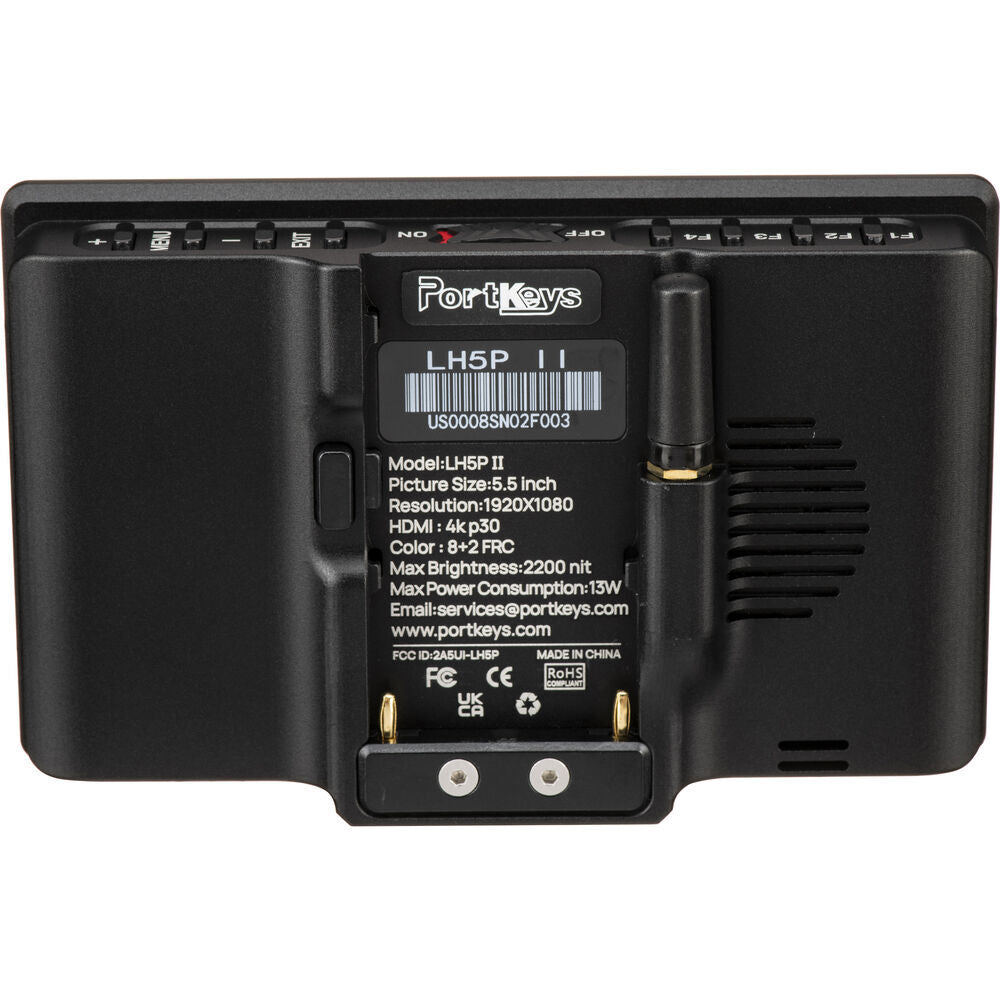

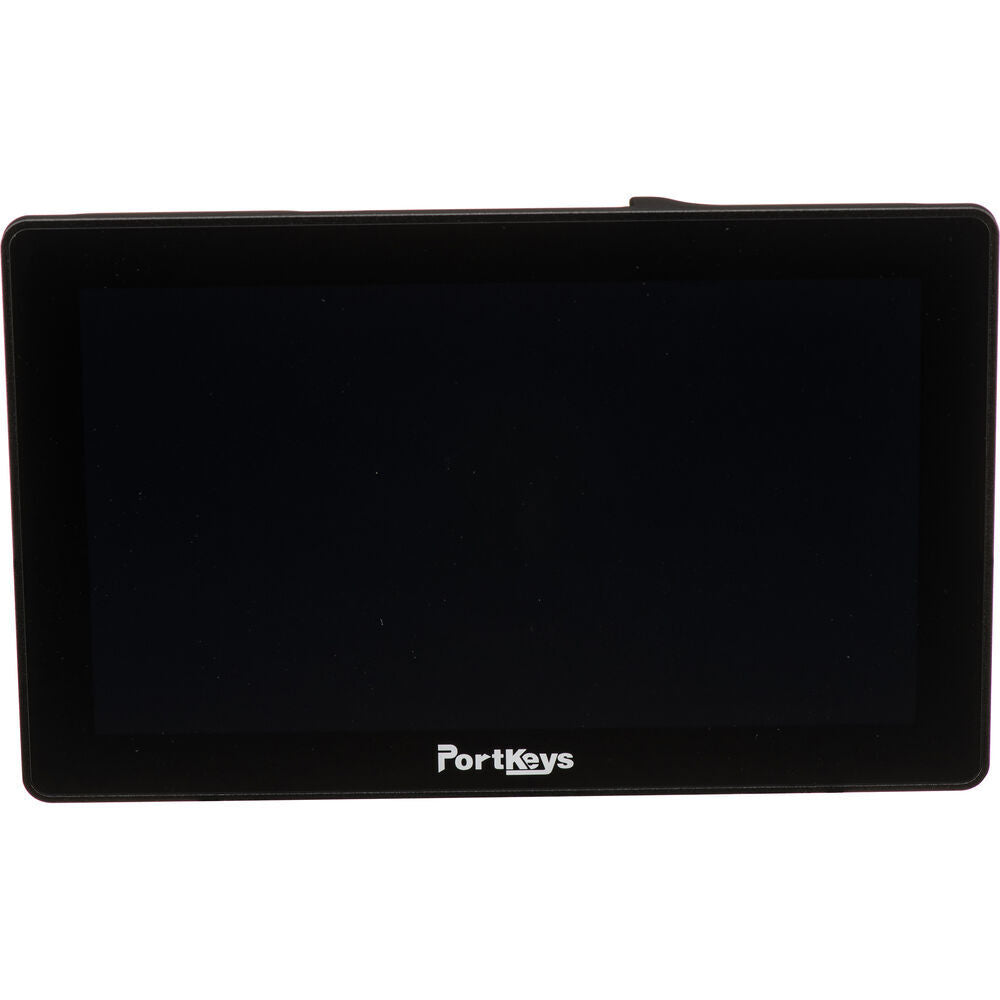

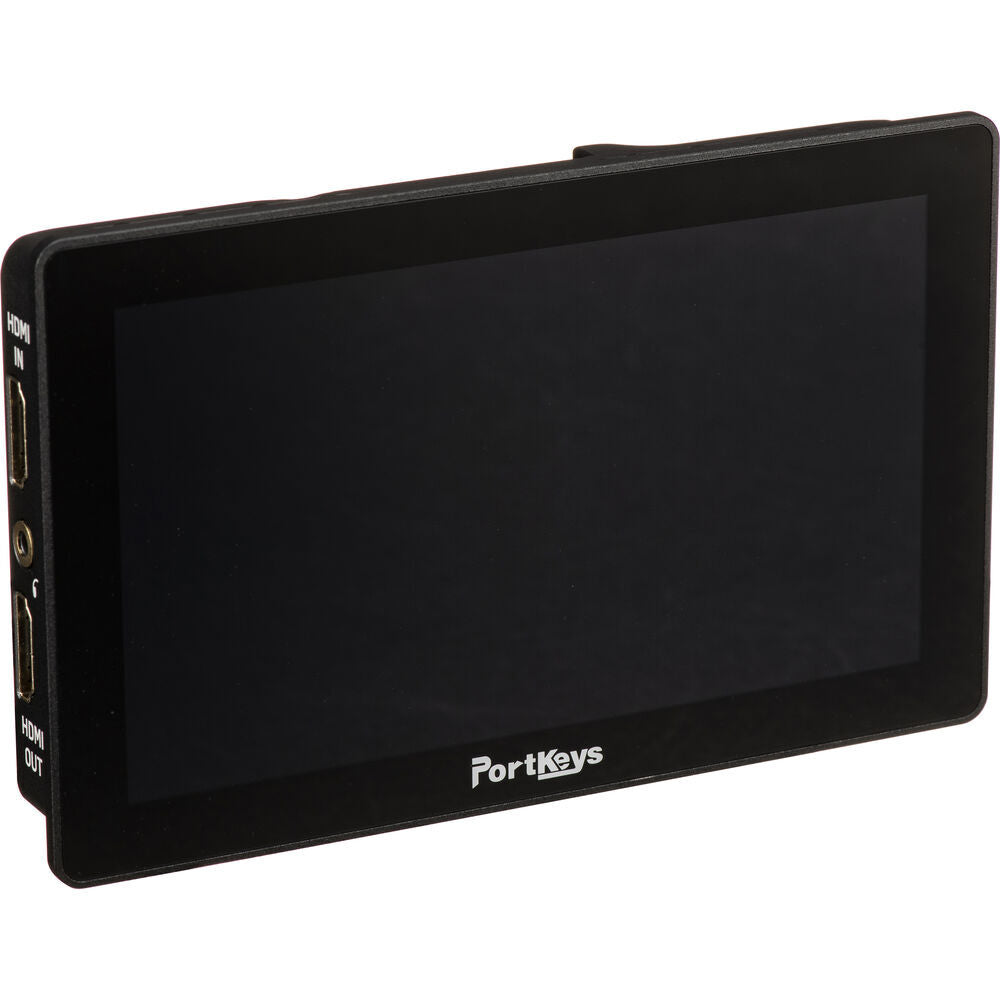

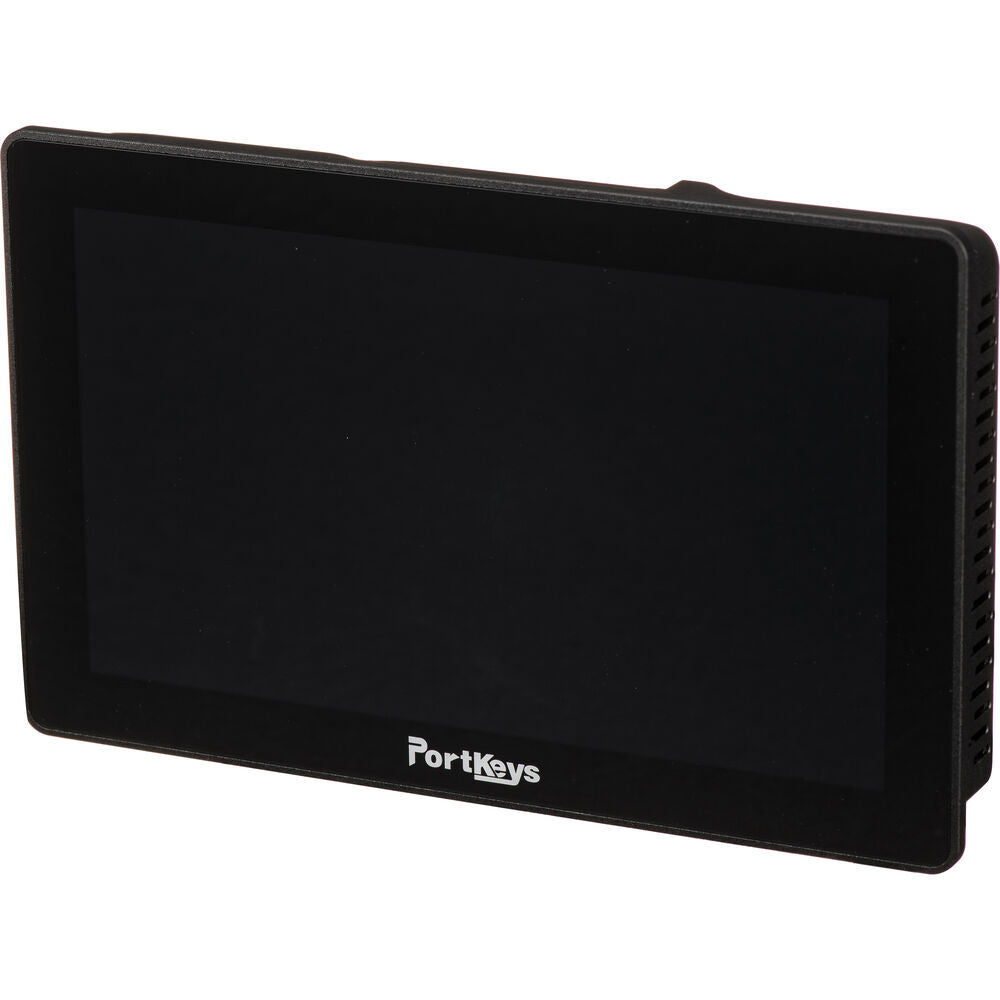

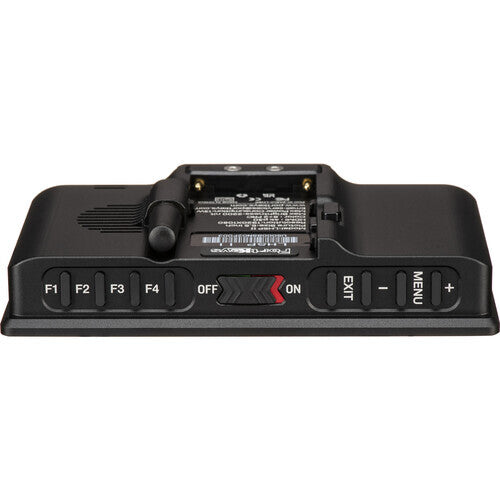

PORTKEYS LH5P II 5.5" Touchscreen Monitor with Camera Control for BMPCC/4K/6K/URSA Mini
Features
- 5.5" HDMI 1920 x 1080 Touchscreen
- BMPCC/4K/6K/URSA Mini Control
- Up to DCI 4K24 Video Input Support
- 2200 cd/m² Brightness, HDR Preview
- HDMI Input & Output, Headphone Jack
- Integrated Bluetooth Module
- Control Record, Shutter, Focus & More
- Wired Tilta Nucleus-N/M Motor Control
- 3D LUT Support, L-Series Battery Plate
- Camera Control Cable Included
Add pro monitoring tools and control for select Blackmagic Design cameras to your camera rig with the LH5P II 5.5" Touchscreen Monitor from PORTKEYS. This bright, 5.5" on-camera touchscreen display offers 2200 cd/m² brightness with the ability to input and output up to DCI 4K24 or UHD 4K30 video via HDMI. Compatible with Blackmagic Pocket Cinema Camera, BMPCC 4K, BMPCC 6K, and URSA Mini cameras, this monitor features a built-in Bluetooth module that enables select camera functions and includes a control cable to connect your device to the monitor.
Camera Control Functions
- Camera control via the integrated Bluetooth module and control cable
- Control functions include iris, shutter, zoom, frame rate, and ISO
- Set shortcut key F to control camera recording start/stop
Tilta Motor Control
Provides wired control for Tilta Nucleus-N/M lens motors
Hi-Bright 5.5" Touchscreen Monitor
5.5" LCD on-camera monitor features 2200 cd/m² and a 1000:1 contrast ratio for daylight visibility
DCI/UHD 4K Video
Supports HDMI input and output up to DCI 4K24 or UHD 4K30
Display Functions
- 3D LUT support with custom LUTs via USB
- Customized peaking, false color, luma waveform
- Real-time eye focus
- Anamorphic de-squeeze
- Anamorphic lens calibration
- Frame guides, crosshairs, grids, crop
- Check field, zebra, luma histogram
- RGB waveform, audio meters
- HDR/HLG support
Specs
Display
| Panel Type | LCD |
| Display Size | 5.5" / 14.0 cm |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 178° Vertical: 178° |
| Touchscreen | Yes |
| Maximum Brightness | 2200 nits / cd/m2 |
| Contrast Ratio | 1000:1 |
| Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) |
| HDR Compatibility | Yes |
| Pixels Per Inch (ppi) | 401 ppi |
| Color Gamut | 100% Rec. 2020 85% DCI-P3 |
| Image Controls | Anamorphic De-Squeeze, Check Field, Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Assist, Focus Peaking, H/V Delay, Histogram, Image Flip, Screen Markers, Waveform, Zebra |
| Video I/O |
1 x HDMI Input 1 x HDMI Output |
| Embedded Audio | HDMI |
| Audio I/O | 1 x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | None |

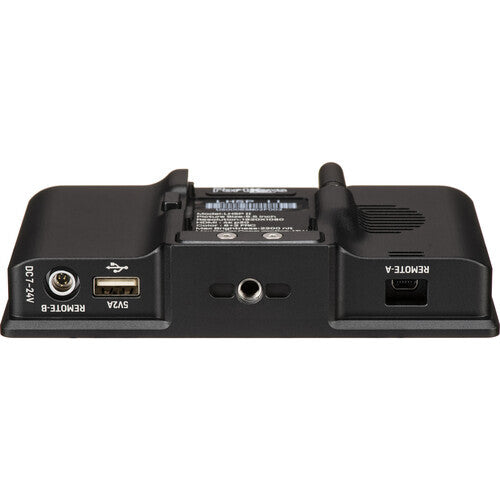

| Power I/O | 1 x Proprietary (24 VDC) Input/Output |
| Other I/O |
1 x Mini-USB 1 x USB-A Input |
| Media/Memory Card Slot | None |
| Wi-Fi | None |
Format Support
| Video Format |
HDMI (8-Bit 4:4:4/4:2:2) DCI 4K: 24 UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94/50 480i: 60/59.94/50 |
Power
| DC Input Power | 7 to 24 VDC |
| Battery Type | 1 x L-Series |
| Power Consumption | 13 W (Maximum) |
| Mounting | 1 x 1/4"-20 Female |
Environmental
| Certifications | FCC Part 15 C *as per Manufacturer |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
General
| Material of Construction | Aluminum, Glass |
| Dimensions | 5.7 x 3.5 x 1.22" / 144 x 90 x 30.88 mm |
| Weight | 10.1 oz / 285 g |
