Vendor:PortKeys

PORTKEYS LEYE 3G-SDI & HDMI 2.4" LCD Electronic Viewfinder

$1,149.00 AUD

Features

  • EVF with 1440 x 900 Resolution
  • Supports UHD 4K via HDMI, 1080p via BNC
  • 2.4" LCD Screen, 8-Bit Color
  • 450cd/m² Brightness, 1100:1 Contrast
  • -3 to +8 Diopter Adjustment
  • Rosette, NATO Rail, 3 x 1/4"-20 Threads
  • 3D LUT Support via USB Type-A
  • Canon LP-E6 Battery Plate
  • Various Video Assist Functions
  • Round Sponge Eye Mask

The LEYE 3G-SDI & HDMI 2.4" LCD Electronic Viewfinder from PORTKEYS expands upon the capabilities of the previous model by adding a 3G-SDI input and an integrated LP-E6 battery plate to the interface. The 3G-SDI input supports up to 1080p video, while the HDMI input supports up to UHD 4K. This viewfinder features a 2.4" LCD screen with 1440 x 900 resolution, 450 cd/m² brightness, and 1100:1 contrast for viewing images clearly in bright conditions. A round sponge eye mask further ensures viewability by preventing direct sunlight from burning the LCD screen.

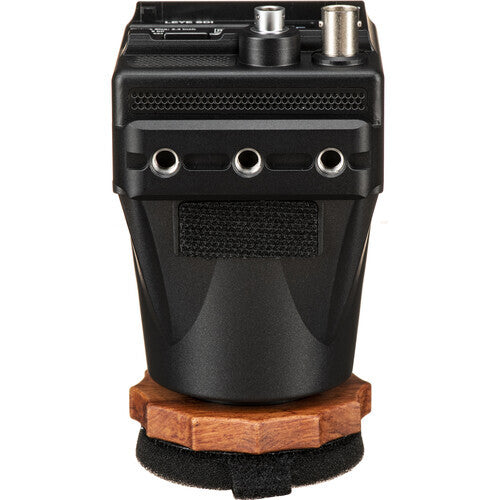

Several mounting options are integrated into the viewfinder for attachment to your camera rig configuration: a rosette, three 1/4"-20 threads, and a NATO rail. Various video assist functions can be enabled to monitor the quality of your image, and a -3 to +8 diopter range allows you to adjust focus to comfortably suit your vision. Power for the device, when not provided with an LP-E6 compatible battery or power bank, can also be achieved with the self-locking 4-pin aviation connector input. You can upload custom 3D LUTs of your choice to the viewfinder or upgrade the firmware using the USB Type-A input.

Features at a Glance

  • Upload 3D LUTs and upgrade firmware via the USB Type-A input
  • Integrated Canon E6 battery plate for power via compatible battery or power bank

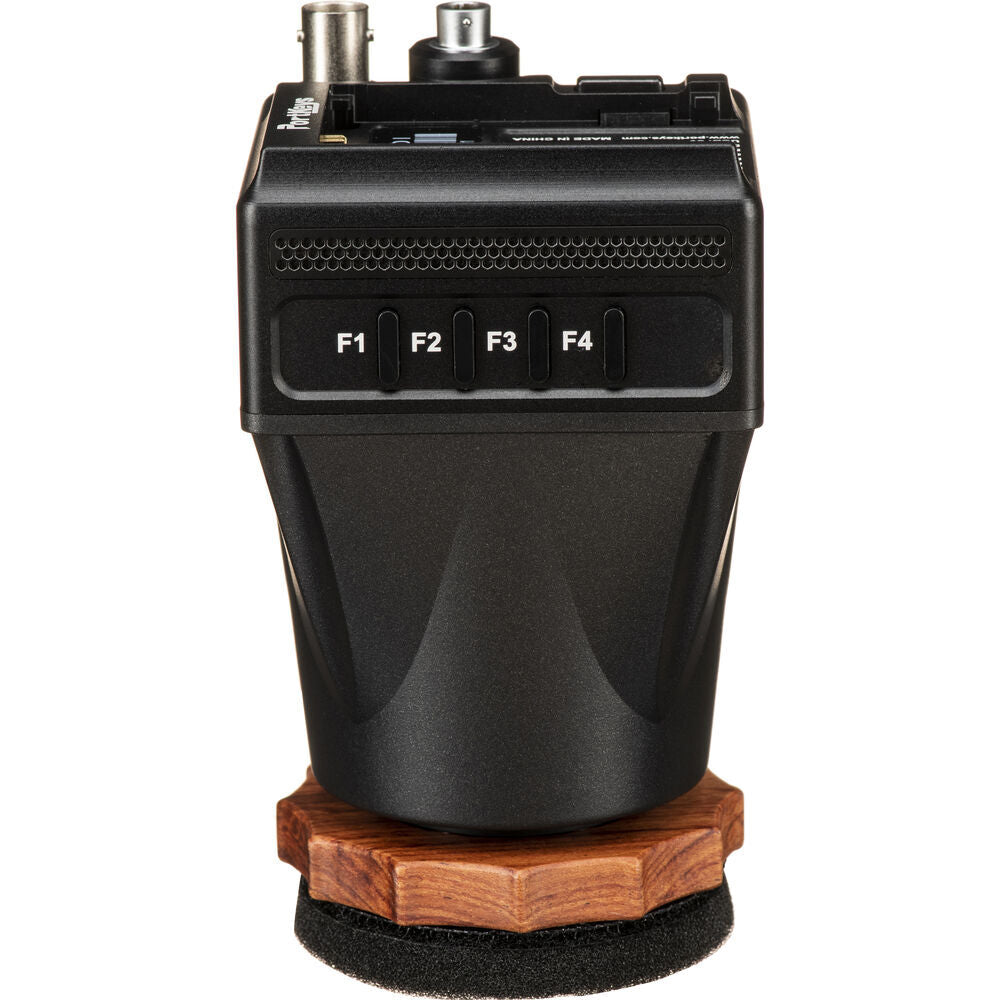

  • Four customizable function keys to make programming settings quick and efficient
  • Added passive heatsink vent for improved heat dissipation

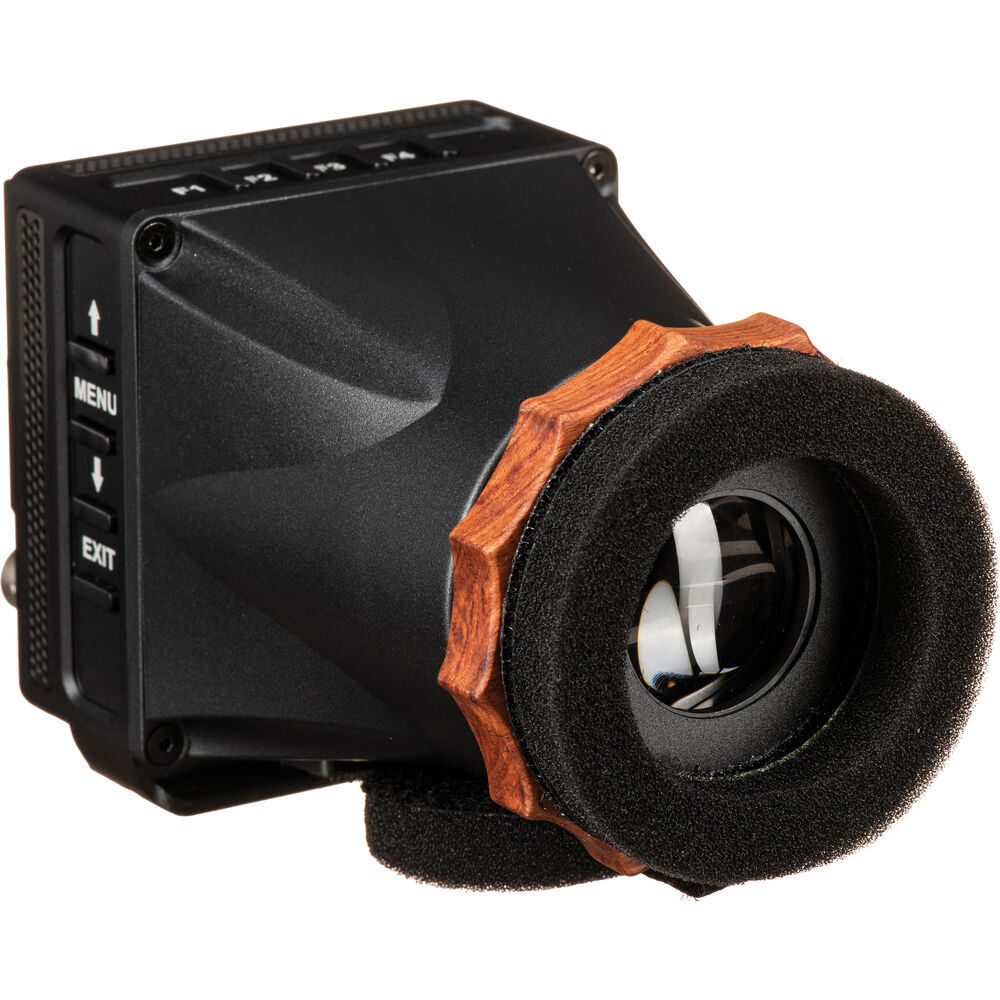

  • Round sponge eye mask for barrier-free monitoring with or without glasses

Video Assist Functions

  • Anamorphic de-squeeze
  • Audio meters
  • Backlight
  • Brightness
  • Check field
  • Chroma
  • Color temperature
  • Contrast
  • Cross hair
  • Display flip
  • False colors
  • Grids
  • Guides
  • Histogram
  • H/V delay
  • Image flip/crop
  • Luma waveform
  • OSD flip
  • Peaking
  • Sharpness
  • Tint
  • Underscan
  • Zebra

 Specs:

Display

Color/Monochrome Color
Panel Type LCD
Display Size 2.4" / 6.1 cm
Screen Resolution 1440 x 900
Viewing Angle Horizontal: 160°
Vertical: 160°
Touchscreen No
Maximum Brightness 450 nits / cd/m2
Contrast Ratio 1100:1
Bit Depth / Color Support 8-Bit (16.7 Million Colors)
Pixels Per Inch (ppi) 728 ppi
Image Controls Anamorphic De-Squeeze, Check Field, Color Temperature Selection, False Color, Focus Peaking, H/V Delay, Histogram, Image Flip, OSD Flip, R/G/B/Chroma Only, Underscan, Waveform, Zebra

I/O

Video I/O 1 x BNC Input
1 x HDMI Input
Video Format SDI (8-Bit)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
1080PsF: 30/29.97/25/24/23.98
720p: 60/59.94/50
480i: 59.94
576i: 50
HDMI (8-Bit)
UHD 4K: 30/25/24/23.98
DCI 4K: 24
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
1080PsF: 30/29.97/25/24/23.98
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94/50
480i: 60/59.94/50
Power I/O 1 x Unspecified 4-Pin (24 VDC) Input
Other I/O 1 x USB-A 2.0 Input

Optics

Diopter Correction -3.0 to +8.0
Field of View 178°

Power

DC Input Power 7 to 24 VDC
Battery Type 1 x LP-E6
Power Consumption 5 W (Maximum)

General

Mounting 1 x NATO Rail
3 x 1/4"-20 Female
1 x Rosette
Material of Construction Aluminum, Plastic
Dimensions 4.9 x 3.1 x 2.8" / 125 x 78 x 70 mm
Weight 9.3 oz / 265 g
