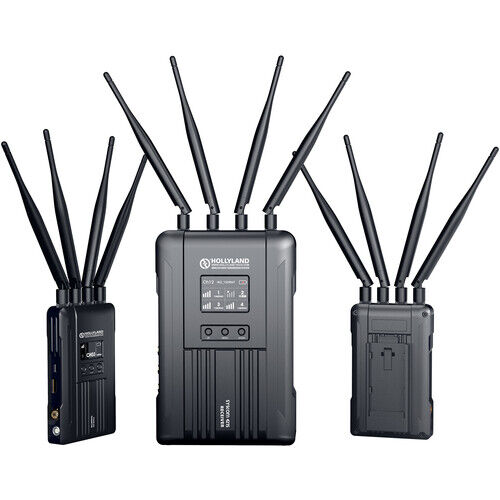

Hollyland Syscom 421S Wireless Video & Audio Transmission System

Features Multi-Cam Transmitter and Control System 1080p60 Transmitter/Receiver 1800' Range 4 x Transmitters to 1 x Receiver SDI/HDMI Input and Output Ethernet Pass-Through for RTSP Streaming 0.07 Second Latency IP/RS-422/485 PTZ Camera Control Supports Tally and Tally Lights Built-In Battery Plates

Specifications: Wireless Signal:

Wireless Range 1800' / 548.64 m (Line-of-Sight) Channel Bandwidth 40 MHz Frequency Range US: 5.1 to 5.9 GHz Latency < 0.07 sec RF Power 22 dBm RF Sensitivity -90 dBm

Interfaces:

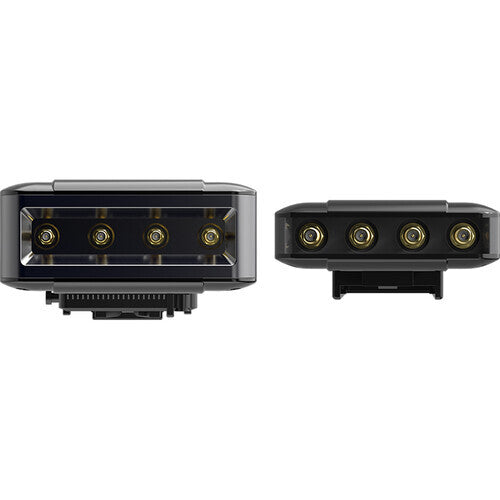

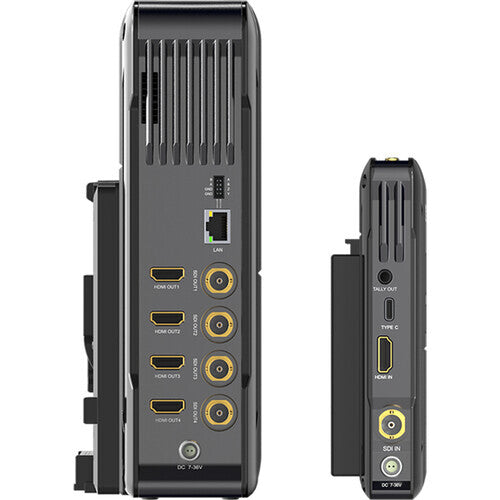

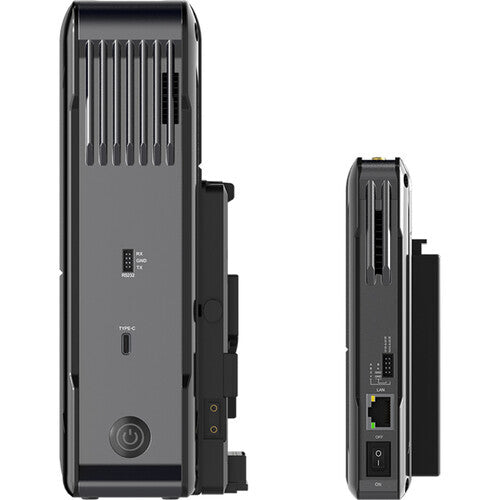

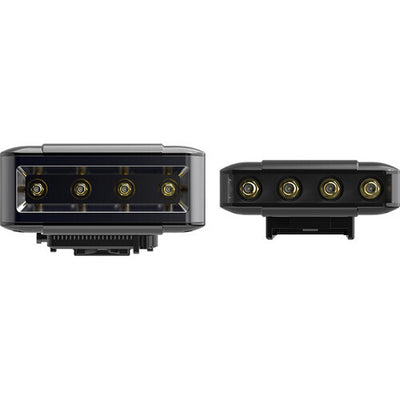

Transmitter Antenna Ports 4 x RP-SMA Male Receiver Antenna Ports 4 x RP-SMA Male Transmitter Video Connectors 1 x BNC (3G-SDI / HD-SDI) Input 1 x HDMI Input Receiver Video Connectors 4 x BNC (3G-SDI) Output 4 x HDMI Output Transmitter Other I/O 1 x USB Type-C 1 x RJ45 10/100/1000 Ethernet, RS-422, RS-485 1 x 3.5 mm Tally Output Receiver Other I/O 1 x USB Type-C 1 x RJ45 10/100/1000 Ethernet, RS-422, RS-485 HDCP Support None Embedded Audio SDI HDMI

Format Support:

Broadcast System Compatibility NTSC, PAL Video Format SDI/BNC: 1080p at 23.98, 24, 25, 30, 50, 60 fps 1080i at 50, 60 fps 720p at 50, 60 fps HDMI: 1080p at 24, 25, 30, 50, 60 fps 1080i at 50, 60 fps 720p at 50, 60 fps 576p at 50 fps 480p at 60 fps

Display

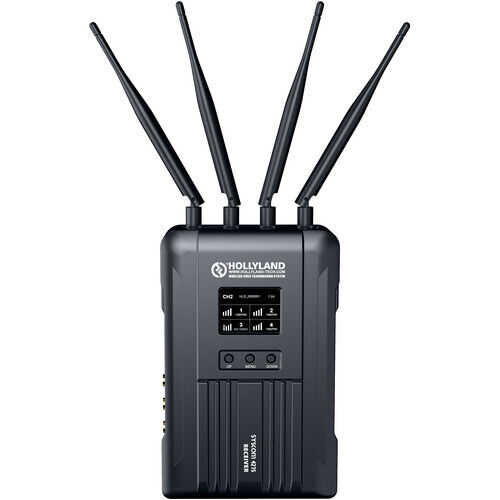

Transmitter Panel Type OLED Receiver Panel Type OLED

Power

Transmitter Built-In Battery None Receiver Built-In Battery None Transmitter Battery Support 1 x Sony L-Series / NP-F Type Receiver Battery Support 1 x V-Mount Transmitter Power Connector 1 x 2-Pin LEMO (7 to 36 VDC) Input Receiver Power Connector 1 x 2-Pin LEMO (18 to 36 VDC) Input Transmitter Power Consumption Device: (12 W) Receiver Power Consumption Device: (32 W)

General

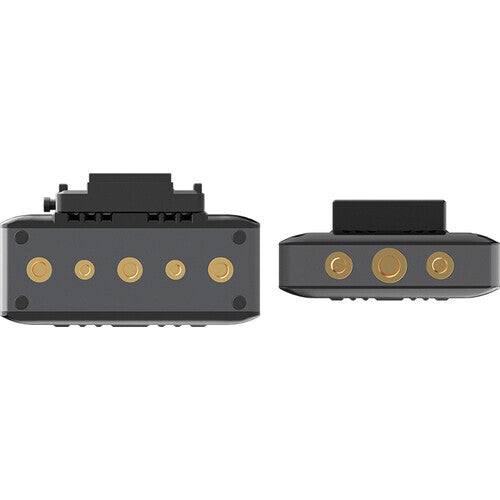

Transmitter Mounting 1 x 1/4"-20 Female Receiver Mounting 1 x 1/4"-20 Female Memory Card Slot Not Specified by Manufacturer Transmitter Dimensions 5.67 x 3.46 x 1.18" / 144 x 88 x 30 mm (Excluding Antenna and Battery Plate) Receiver Dimensions 9.53 x 5.83 x 2.44" / 242 x 148 x 62 mm (Excluding Antenna and Battery Plate) Transmitter Weight 0.9 lb / 431.5 g (Excluding Antenna) Receiver Weight 3.6 lb / 1621 g (Excluding Antenna)

Content List: Hollyland Syscom 421 1800' Wireless Video & Audio Transmission System 4 x Syscom421 Transmitter 1 x Syscom 421 Receiver 25 x 5 GHz Antenna 4 x 7" Magic Arm 1 x OTG Cable 4 x DC Conversion Cable 5 x RS485/RS422 Interface Cable 1 x Power Adapter
