Blackmagic Design Videohub 20x20 12G Zero-Latency Video Router
Blackmagic Design Videohub 20x20 12G Zero-Latency Video Router

Vendor:Blackmagic Design

Blackmagic Design Videohub 20x20 12G Zero-Latency Video Router

$4,065.00 AUD

Items Included

  • Blackmagic Design Videohub 20x20 12G Zero-Latency Video Router
  • Router Control Software
  • Internal Software Updater Application
  • Limited 1-Year Manufacturer Warranty

Key Features

  • Zero-Latency Routing Switcher
  • 20 x 12G-SDI Inputs/20 x 12G-SDI Outputs
  • Supports Up to DCI 4K60 Video
  • Combines SD, HD, UHD 4K & DCI 4K Video
  • Push-Button, Knob & Ethernet Control
  • 2.2" Front Panel LCD Status Display
  • SDI Reclocking, Compact 1 RU Size
  • Includes Videohub Mac/Windows Software

Support a mix of multiple video formats using the Videohub 20x20 12G Zero-Latency Video Router from Blackmagic Design. This advanced router provides 20 12G-SDI inputs and 20 12G-SDI outputs for routing any combination of SD, HD, UHD 4K, and DCI 4K video. The Videohub 20x20 12G centralizes all your SDI cables in one hub, enabling you to connect any video input to any video output, or a single video input to multiple video outputs while eliminating clusters of cables and the need for complex diagrams. This versatile unit can be used with multiple HyperDeck recorders for redundant mastering, to route video to multiple streaming processors for all your broadcast platforms, or to add extra inputs to an ATEM switcher.

12G-SDI Multi-Rate Connections

  • Multi-rate 12G-SDI connections enable you to route up to 10 different video standards at the same time.
  • Supports up to DCI 4K60 video resolutions.
  • Provides 4:2:2 8 or 10-bit color routing in any standard.
  • Works with 4:4:4 12-bit SDI up to DCI 4K30 for feature films.

SDI Reclocking

  • Reclocking on every 12G-SDI input regenerates the signal, providing the maximum video quality.
  • Reduces or eliminates signal loss and jitter when using longer cables.

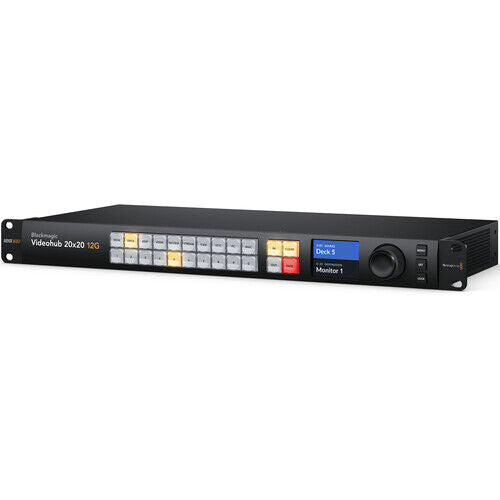

Front Panel Controls

  • A sleek front panel offers multiple control options.
  • Buttons include assignable shortcuts and In, Out, Clear, and Take buttons.
  • The machined metal spin knob provides precise control using an electronic clutch.

Optional Hardware Control Panels

  • Can be used with optional hardware panels for easier control when components are spaced out in large facilities.
  • Compatible with both the Videohub Master Control Pro and the Videohub Smart Control Pro.

Flexible Control

The macOS and Windows-compatible Videohub Software Control provides easy-to-use touchscreen router control.

Built-In LCD

  • View your live input before routing the signal on the built-in 2.2" LCD screen.
  • Bottom labels enable you to scroll through your sources in alphabetical order.
  • Eliminates the need to add an external SDI monitor to your setup.

Setup Utility and SDK

Use the Videohub Setup software to get started or the SDK to add protocol support for broadcast automation systems.

Multiple Language Support

Customized support is available in:

  • English, Chinese, Japanese, Korean
  • Spanish, German, French, Russian
  • Italian, Portuguese, Turkish, Polish, Ukrainian

Blackmagic Design 20x20 Specs

Processing

Switching Type

Pushbutton, Software
Processing Resolution

DCI 4K at 60
Color Processing

8-Bit 4:2:2
10-Bit 4:2:2
12-Bit 4:4:4
Audio Processing

48 kHz / 24-Bit

Input

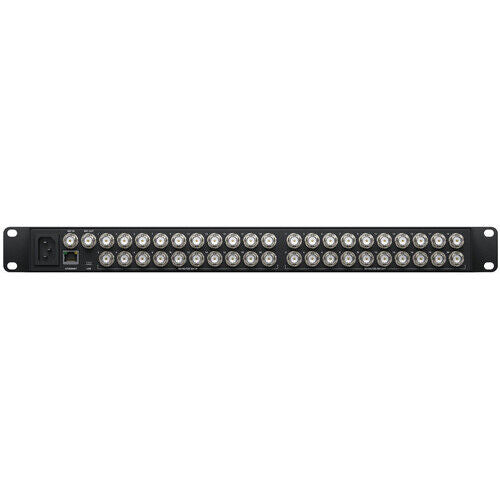

Video Inputs

20x BNC (12G-SDI)
Input Video Format

SDI (10/12-Bit 4:4:4 RGB, YUV)
DCI 4K up to 30 fps
UHD 4K up to 30 fps
DCI 2K up to 60 fps
DCI 2KPsF up to 30 fps
1080p up to 60 fps
1080PsF up to 30 fps
1080i up to 60 fps
SDI (10-Bit 4:2:2 RGB, YUV)
DCI 4K up to 60 fps
UHD 4K up to 60 fps
DCI 2K up to 60 fps
DCI 2KPsF up to 30 fps
1080p up to 60 fps
1080PsF up to 30 fps
1080i up to 60 fps
720p at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps
Embedded Audio Input

SDI

Output

Video Outputs

20x BNC (12G-SDI)
Output Video Format

SDI (10/12-Bit 4:4:4 RGB, YUV)
DCI 4K up to 30 fps
UHD 4K up to 30 fps
DCI 2K up to 60 fps
DCI 2KPsF up to 30 fps
1080p up to 60 fps
1080PsF up to 30 fps
1080i up to 60 fps
SDI (10-Bit 4:2:2 RGB, YUV)
DCI 4K up to 60 fps
UHD 4K up to 60 fps
DCI 2K up to 60 fps
DCI 2KPsF up to 30 fps
1080p up to 60 fps
1080PsF up to 30 fps
1080i up to 60 fps
720p at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps
Embedded Audio Output

SDI

Connectivity

Other I/O

1x RJ45 LAN
1x USB-C
Video Standard Compliance

SMPTE 259M/292M/296M/372M/424M/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-10
ITU -R BT.601/BT.656

Display

Display Size

2.2"

Hardware

OS Compatibility

macOS 12 or Later / Windows 10 or Later
Wireless

No

Power

Power I/O

1x IEC C14 (100 to 240 VAC ) Input
Power Consumption

27.5 W

General

Operating Conditions

32 to 72°F / 0 to 40°C up to 90% Humidity
Storage Conditions

-4 to 140°F / -20 to 60°C
Rack Form Factor

1 U
Dimensions

19 x 9.3 x 1.74" / 48.3 x 23.6 x 4.42 cm
Weight

7.87 lb / 3.57 kg
