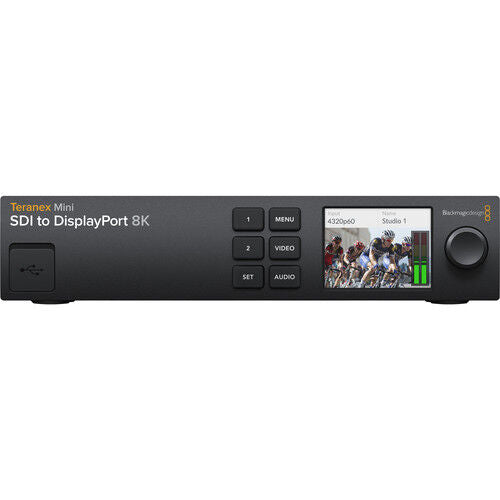

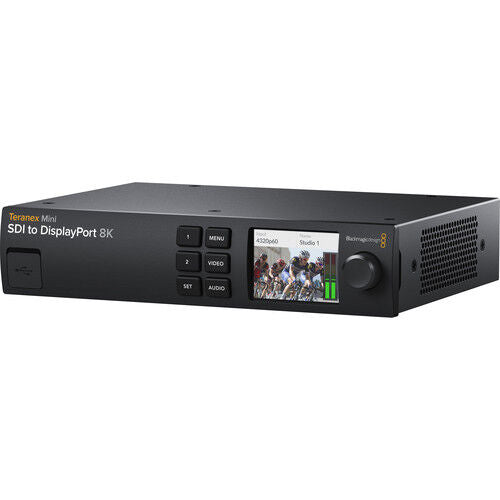

Blackmagic Design Teranex Mini SDI to DisplayPort 8K HDR Converter
Items Included
- Blackmagic Design Teranex Mini SDI to DisplayPort 8K HDR Converter
- 4 x Rubber Foot
- Limited 1-Year Manufacturer Warranty
Key Features
- Supports DCI 8K, 8K, DCI 4K, UHD, 2K, HD
- Accepts Third-Party Calibration Probes
- 12G-SDI I/O / DisplayPort/USB-C D.P. Out
- 2 x Selectable, On-Screen Scopes
- Auto-Convert 2SI and Square Division
- Supports HDR Workflows
- Supports 33-Point 3D LUTs
- Front-Panel Interface, Audio Meters
- Rack-Mountable with Separate Kit
Features
SDI to DisplayPort Conversion
Converts SDI sources to DisplayPort, supporting up to DCI 8K60 input
Quad-Link 12G-SDI
Quad-link 12G-SDI inputs with loop outs
SDI & DisplayPort Outputs
Quad-link 12G-SDI output, one USB-C DisplayPort output, and two full-size DisplayPort outputs
Pro Monitor Compatibility
Compatible with pro monitors like the Apple 32" Pro Display XDR
Calibration Tool Compatibility
Supports third-party calibration probes like the SpectraCal C6, X-Rite i1 Display Pro, and the Klein K10-A for accurate alignment on connected displays
HDR Support
Supports SDR and both HLG or PQ HDR via the SDI and DisplayPort outputs
Live Scope Overlays
Overlay up to two live scopes on the monitor
3D LUT Support
Supports 3D, 10-bit LUTs with two front-panel control buttons

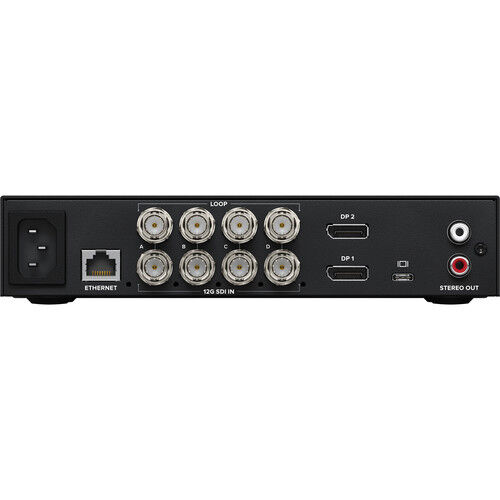

Inputs/Outputs
| Video Inputs | 4x BNC (12G-SDI) |
| Audio Inputs | No |
| Video Outputs | 4x BNC (12G-SDI) (Loop Output) |
| Audio Outputs | 2x RCA Analog |
| Other I/O | 1x RJ45 Control |
Format Support
| Input Video Format | SDI (4:4:4/4:2:2 RGB, YUV) |
| Output Video Format | SDI (4:4:4/4:2:2 RGB, YUV) |
| Output Audio Format | Analog: 48 kHz / 24-Bit |
| Embedded Audio | SDI: 16-Channel |
Standards
| Video Standard Compliance | SMPTE 259M/292M/296M/372M/424M-B/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10 |
Hardware
| Display Size | 2.2" |
| OS Compatibility | Windows 10 |
Power
| Power I/O | 1x IEC C14 Input |
| Power Consumption | Device: 100 to 240 VAC (35 W) |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 0 to 90% |
General
| Dimensions | 8.27 x 6.93 x 1.73" / 21.01 x 17.6 x 4.39 cm |
| Weight | 2.6 lb / 1.18 kg |
