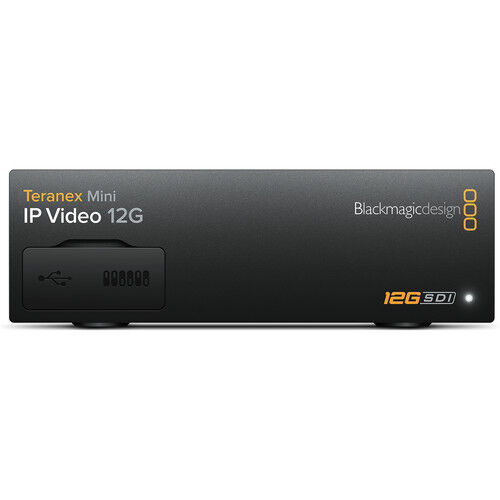

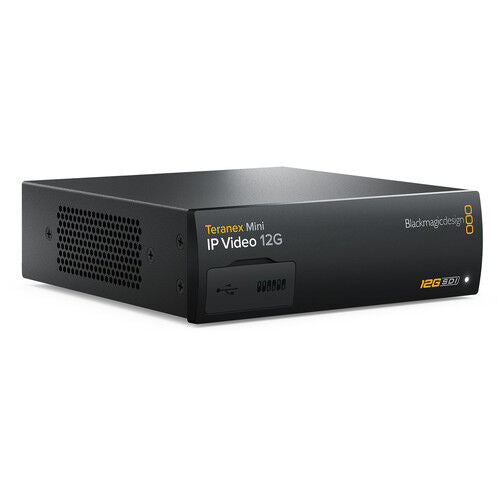

Blackmagic Design Teranex Mini IP Video 12G
Items Included
- Blackmagic Design Teranex Mini IP Video 12G
- SD Card with Software and Manual
- Limited 3-Year Manufacturer Warranty
Key Features
- Advanced High-Data Rate Signal Converter
- TICO Encoder / Decoder
- Supports up to 4K DCI 4096x2160p Signals
- Two Independent 12G-SDI 10-Bit Outputs
- Gigabit Ethernet for up to 1080p60
- Optional 10G Optical Ethernet Support
- Supports Optional LCD Smart Front Panel
- Intelligent Thermal Heat Dissipation
- Manage Numerous Units from a Mac or PC
Requires a minimum of two units—one for encoding the signal and one for decoding the signal.
TICO encoding is a visually lossless compression designed to let you distribute video across an IP network.
The unit supports signals up to 1080p60 over a standard Ethernet connection. For support of signals up to 12-G SDI (4K DCI or 4K UHDF), an optional 10G fiber optic Ethernet LC connector is required.
Blackmagic Videohub Software can be used on Windows or Mac OS computers to turn them into a router server that can manage the connections between multiple units so you can build a large custom sized router on your network.
Supports AC voltage using an optional IEC cable (Blackmagic units do not ship with a power cable) or you can power it via PoE+ with a compatible router.
Setup is done via built-in DIP switches, Blackmagic Teranex setup software, or an optional Teranex Mini Smart Panel with LCD screen.
You can control your Mini 12G-IP via the optional Teranex Mini Smart Panel with LCD screen or Blackmagic Video Hub software.
Embedded audio is supported—there are no separate audio inputs/outputs.
Blackmagic Teranex setup and Video Hub software is included on the SD card that ships with your unit.
Key Specs
| Video I/O | Input |
| Video Resolution | SDI Input (10-Bit 4:4:4/4:2:2 RGB, YUV) |
| Broadcast System Compatibility | NTSC, PAL |
| IP Video | Encoding via TICO |
| OS Compatibility | macOS |
Inputs/Outputs
| Video I/O | Input |
| Other I/O | Input/Output |
| Expansion Slots | 1x SFP Slot |
Format Support
| Video Resolution | SDI Input (10-Bit 4:4:4/4:2:2 RGB, YUV) |
| Embedded Audio | LAN (RJ45)/SDI |
| Reclocking | No |
Standards
| Video Standard Compliance | ITU-R: BT.601/BT.656 |
| Broadcast System Compatibility | NTSC, PAL |
IP Streaming
| IP Video | Encoding via TICO |
Hardware
| Media/Memory Card Slot | Single Slot: SD (Unspecified Type) |
| OS Compatibility | macOS |
Power
| Power I/O | 1x RJ45 (48 VDC ) Input |
| PoE Support | PoE+ 802.3at |
| Power Consumption | Device: 90 to 240 VAC (16 W) |
General
| Operating Conditions | 32 to 104°F / 0 to 40°C at 0 to 90% Humidity |
| Storage Conditions | -18 to 140°F / -28 to 60°C |
| Dimensions | 6.69 x 5.51 x 1.75" / 16.99 x 14 x 4.45 cm |
| Weight | 1.28 lb / 581 g |
