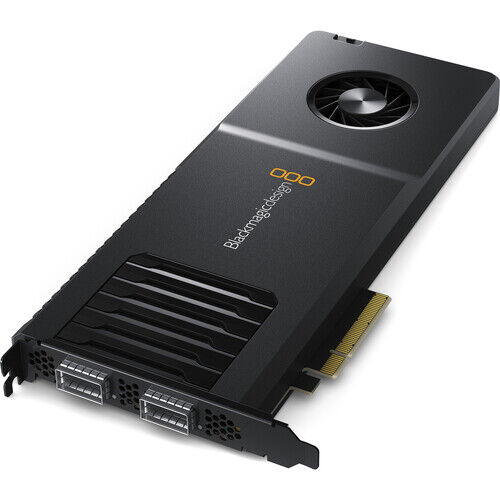

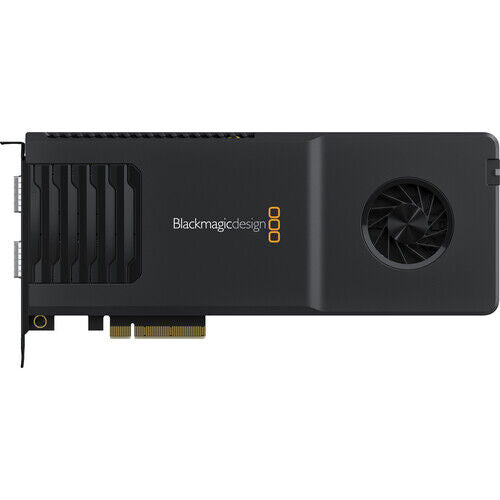

Blackmagic Design DeckLink IP 100G
Items Included
- Blackmagic Design DeckLink IP 100G
- Limited 3-Year Manufacturer Warranty
Key Features
- PCIe IP Video Capture & Playback Card
- Up to 8 Simultaneous UHD Video Channels
- Dual Redundant 100G Ethernet Ports
- GPU Direct RDMA Support Reduces Latency
- PCI Express Gen 4 Interface with 8 Lanes
- Ideal for 2110 IP Broadcast Systems
- Universal Video Software Compatibility
- Compatible with macOS, Windows & Linux
- Media Express Software Included
- Built-In Cooling Fan
Beyond performance, the DeckLink IP 100G emphasizes flexibility and security. It supports a wide array of video formats, both compressed and uncompressed, up to DCI 4K120 with 10-bit 4:4:4 color. Integrated support for SMPTE 2110 standards allows full transport of uncompressed video, audio, and ancillary data over managed IP networks with PTP (Precision Time Protocol) synchronization while acting as a hardware-level firewall by isolating video transfers to frame buffers, offering protection from rogue software and unauthorized network access. Whether for multichannel broadcast servers, virtual production stages, or GPU-accelerated AI pipelines, the DeckLink IP 100G is engineered to deliver uncompromising video capture and playback with ultrafast performance.
Advanced Design
- Dual 100 Gb/s QSFP28 Ethernet ports for full redundancy
- PCI Express 8-lane Generation 4, compatible with 8- and 16-lane PCI Express slots
- 6-pin auxiliary power connector for stable high-speed operation
- Built-in active cooling for thermal management under heavy load
Video Standards and Formats
- Up to eight simultaneous channels of HD, UHD 4K, and DCI 4K up to 120 fps
- Supports SD (PAL and NTSC), 720p, 1080p, DCI 2K, UHD 4K, and DCI 4K standards
- Static HDR metadata support with HLG and PQ characteristics
- 8-, 10-, and 12-bit color in RGB 4:4:4; 8- and 10-bit color in YUV 4:2:2
- Rec. 601, Rec. 709, and Rec. 2020 color spaces
Software and OS Compatibility
- Works with DaVinci Resolve, Final Cut Pro, Adobe Premiere Pro, AVID Media Composer, and more
- Compatible with macOS, Windows, and Linux
- Includes Media Express, DaVinci Resolve, Disk Speed Test, Livekey, and Blackmagic Desktop Video Utility software
Broadcast and Network Protocols
- SMPTE 2110-20 (video), 2110-21 (timing), 2110-30 (audio), 2110-40 (ancillary data)
- SMPTE 2022-7 stream redundancy
- NMOS IS-04 and IS-05 compliant for discovery and connection management
- PTP (Precision Time Protocol) IEEE 1588-2008 for frame-accurate sync
Blackmagic Design DeckLink IP 100G Specs
Format Support
| Video Resolution | Fiber Input/Output (8/10/12-Bit 4:4:4/4:2:2 RGB, YUV) |
| Audio Format | Unspecified Digital Signal Input/Output: 48 kHz / 24-Bit |
| Embedded Audio | IP: 2-Channel |
Standards
| Video Standard Compliance | SMPTE: ST 2110-20/ST 2110-21/ST-2110 |
| HDCP Support | No |
| HDR Support | Yes: Hybrid Log Gamma |
| Broadcast System Compatibility | NTSC, PAL |
Hardware
| OS Compatibility | Windows 10 to 11 |
General
| Operating Conditions | 41 to 122°F / 5 to 50°C at 0 to 90% Humidity |
| Storage Conditions | -4 to 140°F / -20 to 60°C at 0 to 90% Humidity |
| Dimensions | 10.52" / 26.72 cm |
| Weight | 13.76 oz / 390 g |
