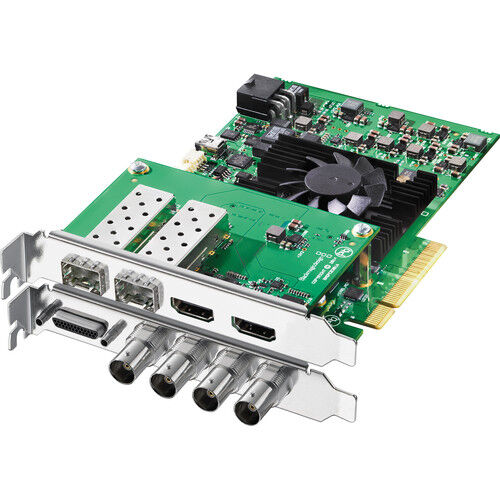

Blackmagic Design DeckLink 4K Extreme 12G Capture & Playback Card
Items Included
- Blackmagic Design DeckLink 4K Extreme 12G Capture & Playback Card
- HDMI Mezzanine Card
- Breakout Cable for Analog I/O and RS-422 Control
- SD Card with Software
- Limited 3-Year Manufacturer Warranty
Key Features
- 8-Lane PCIe Gen2 I/O Card
- Multi-Rate 12G-SDI & HDMI Connections
- Supports UHD 4K & DCI 4K up to 60 fps
- Single & Dual-Link 4:4:4:4/4:2:2 Signals
- 3D Stereoscopic SDI Output at 4:4:4:4
- Up/Down/Cross Conversion
- Optional Optical Fiber I/O Modules
- Breakout Cable for Analog / RS-422
- Genlock & Deck Control
- Compatible with Mac, Windows & Linux
Flexible Format Support
The card offers flexible format and system support, letting you work with compressed video formats such as ProRes and DNxHD, as well as 12-bit 4:4:4 uncompressed video. When working with uncompressed video, all images are pixel-for-pixel identical to the source, without any generational loss. This lets you get sharper keying with green screens, cleaner compositions, superior color correction, and more. Support for common file formats provides ready-to-edit files for use in popular editing, effects, and design software applications. DeckLink Studio 4K is compatible with Mac-, Windows-, and Linux-based workstations.
Optical Fiber Connections
Two optical fiber connections on the daughter card support optional optical fiber modules for Dual Link optical fiber SDI input and output. SMPTE compatible optical modules can be added for up to 12G-SDI speeds, allowing you to choose to connect equipment using optical fiber connections instead of regular BNC copper cables for much longer cable runs, even at 12 Gb/s speeds.
Blackmagic Design Extreme Specs
Inputs/Outputs
| System Connection | PCIe 2.0 x8 |
| Video Inputs | 2x BNC (12G-SDI) |
| Audio Inputs | No |
| Video Outputs | 2x BNC (12G-SDI) |
| Simultaneous Multi-Input Support | Yes: 2 Simultaneous Inputs |
Format Support
| Input Video Format | Component / Composite / SDI (8/10/12-Bit 4:4:4/4:2:2) |
| Input Audio Format | AES/EBU |
| Output Video Format | SDI (8/10/12-Bit 4:4:4/4:2:2) |
| Output Audio Format | AES/EBU |
| Embedded Audio | SDI: 16-Channel |
Standards
| Video Standard Compliance | SMPTE 259M/292M/296M/372M/425M/435/2108-1/ST-2081/ST-2082/ST-2082-10 |
| HDR Support | : |
Hardware
| OS Compatibility | macOS 10.15 |
Power
| Power Consumption | Device: 30 W |
Environmental
| Operating Temperature | 41 to 104°F / 5 to 40°C |
| Storage Temperature | -4 to 113°F / -20 to 45°C |
| Operating Humidity | 0 to 90% |
General
| Dimensions | 6.69" / 169.93 mm |
| Weight | 0.66 lb / 299 g |
