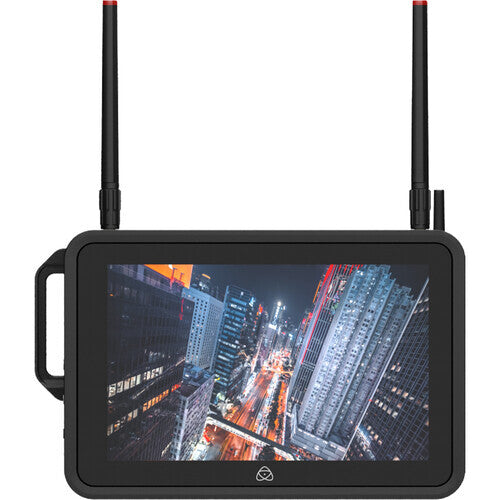

Atomos CONNECT for SHOGUN 7" Monitor

Features

• 7" 1920 x 1200 Touchscreen Display
• 2000 cd/m² Brightness

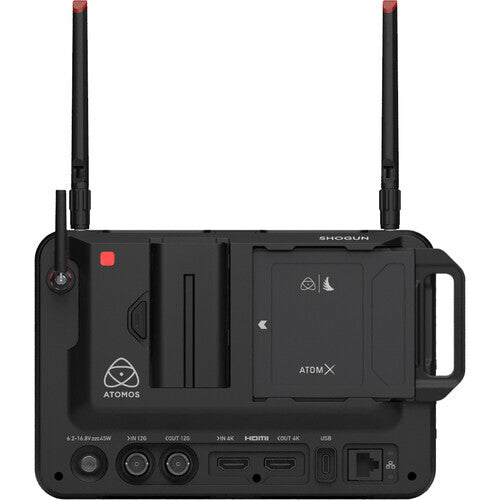

• 2 x 12G-SDI, 2 x HDMI, 1 x USB Type-C
• Records up to 4K Video
• Adobe Frame.io Camera to Cloud Support
• Wi-Fi 6, Bluetooth LE, Gigabit Ethernet
• Dual Recording Capabilities, Streaming
• Power via DC Input or L-Series Battery

The Shogun CONNECT from Atomos expands upon the HDR recording and monitoring capabilities of the Shogun by integrating cloud connectivity via its multiple wireless interfaces. The 7" 1920 x 1200 touchscreen display boasts a brightness of 2000 cd/m². A loop-through 12G-SDI input and output interface supports SDI RAW recording. Both the HDMI and 12G-SDI connections can record, monitor, and transmit 4K video with ease.

Adobe Frame.io support makes the Shogun CONNECT a camera to cloud device, allowing you to take footage from your camera and transfer it over a long-range connection between other devices. Wi-Fi 6, Bluetooth LE, Gigabit Ethernet, and USB Type-C connection ensure flexible, all-around connectivity. Remote collaboration brings production and post-production closer together with features like dual recording and progressive transfer technology. Power for the Shogun CONNECT can be achieved via the locking DC jack or with a separately available L-series battery.

CONNECT Upgrades

• Features a new, brighter HDR screen and range of built-in interfaces
• Loop through 12G-SDI input/output for SDI RAW and HDMI support an expansive range of professional cinema, DSLR, and mirrorless cameras
• ATOMOS AirGlu technology enables direct, long-range communication between devices up to 0.2 miles and wireless timecode lock

Streaming Capabilities

• Supports livestreaming to Facebook Live, Twitch, and YouTube
• Built-in Wi-Fi 6, Gigabit Ethernet, Bluetooth LE, and the ability to join cellular hotspots

Camera to Cloud Device

• Fully integrated Frame.io camera to cloud device
• With support of HDMI and SDI equipped cameras, it offers advanced online workflows and remote collaboration between filmmakers
• Record, monitor, and share your work from one device

Dual Recording

• Creates matching "hero" Apple ProRes, ProRes RAW, or Avid DHxHR/HD files to a "proxy" HEVC (H.265) file simultaneously
• Proxy files can be uploaded during capture using ATOMOS transfer technology for immediate availability in the cloud post-recording

Shogun Control

• Auto HDMI trigger supports Canon, Sony, Atomos Open Standard
• Camera selectable SDI trigger
• Serial 2.5mm jack for LANC control and calibration with separately available USB to serial cable
• Bluetooth LE control via AtomControl App for monitor assist functions
• Wireless RF AirGlu remote start/stop trigger

Monitor Assist Functions

• 3D LUT
• Anamorphic de-squeeze
• Cine frame guides
• Display flip
• False color
• Focus peaking
• Frame grab
• Grid markers
• Isolate color channel
• Onion skin overlay
• RGB parade
• Safe areas
• Social frame guides
• Vectorscope
• Waveform
• Zebra
• Zoom

What's in the box:
1 x Atomos CONNECT Module,

1 x Antenna mount plugs AtomX SSDmini Handle,

1 x Master Caddy III with screws, WIFI Antenna with Black caps,

2 x RF antenna, Antenna Pouch,

1 x 3.5mm audio jack to jack cable
